Nibbles

In this part of the Visual Basic Qyoto programming tutorial, we will create a Nibbles game clone.

Nibbles is an older classic video game. It was first created in late 70s. Later it was brought to PCs. In this game the player controls a snake. The objective is to eat as many apples as possible. Each time the snake eats an apple, its body grows. The snake must avoid the walls and its own body.

Development

The size of each of the joints of a snake is 10px. The snake is controlled with the cursor keys. Initially, the snake has three joints. The game starts immediately. When the game is finished, we display "Game Over" message in the center of the window.

board.vb
Imports Qyoto

NameSpace BoardSpace

public class Board
    Inherits QFrame

    Const WIDTH As Integer = 300
    Const HEIGHT As Integer = 300
    Const DOT_SIZE As Integer = 10
    Const ALL_DOTS As Integer = 900
    Const RAND_POS As Integer = 30
    Const DELAY As Integer = 140

    Dim x(ALL_DOTS) As Integer
    Dim y(ALL_DOTS) As Integer

    Dim dots As Integer
    Dim apple_x As Integer
    Dim apple_y As Integer

    Dim left As Boolean = False
    Dim right As Boolean = True

    Dim up As Boolean = False
    Dim down As Boolean = False
    Dim inGame As Boolean = True

    Dim timer As QBasicTimer
    Dim ball As QImage
    Dim apple As QImage
    Dim head As QImage


    Public Sub New()

        Me.SetStyleSheet("QWidget { background-color: black }")

        Me.FocusPolicy = Qt.FocusPolicy.StrongFocus

        Try
            ball = New QImage("dot.png")
            apple = New QImage("apple.png")
            head = New QImage("head.png")
        Catch e As Exception
            Console.WriteLine("Cannot read images")
            Console.WriteLine(e.Message)
            Environment.Exit(1)
        End Try


        Me.InitGame()

    End Sub


    Private Sub InitGame()

        dots = 3

        For z As Integer = 0 To dots-1
            x(z) = 50 - z*10
            y(z) = 50
        Next

        Me.LocateApple()

        timer = New QBasicTimer()
        timer.Start(DELAY, Me)

    End Sub


    Protected Overrides Sub PaintEvent(ByVal e As QPaintEvent)

        Dim painter As New QPainter()
        painter.Begin(Me)

        If inGame
            Me.DrawObjects(painter)
        Else
            Me.GameOver(painter)
        End If

        painter.End()

    End Sub

    Private Sub DrawObjects(ByVal painter As QPainter)

        painter.DrawImage(apple_x, apple_y, apple)

        For z As Integer = 0 to dots - 1
            If z = 0
                painter.DrawImage(x(z), y(z), head)
            Else
                painter.DrawImage(x(z), y(z), ball)
            End If
        Next

    End Sub

    Private Sub GameOver(ByVal painter As QPainter)

        Dim msg As String = "Game Over"

        Dim small As New QFont("Helvetica", 12)
        small.SetBold(True)
        Dim metr As New QFontMetrics(small)

        Dim textWidth As Integer = metr.Width(msg)
        Dim h As Integer = Me.Height
        Dim w As Integer = Me.Width

        painter.SetPen(New QPen(New QBrush(Qt.GlobalColor.white), 1))

        painter.SetFont(small)
        painter.Translate(New QPoint(w/2, h/2))

        Dim text_x As Integer = -textWidth / 2
        Dim text_y As Integer = 0

        painter.DrawText(text_x, text_y, msg)

    End Sub


    Private Sub CheckApple()

        If x(0) = apple_x And y(0) = apple_y

            dots += 1
            Me.LocateApple()

        End If

    End Sub

    Private Sub Move()

        For z As Integer = dots To 1 Step -1
            x(z) = x(z - 1)
            y(z) = y(z - 1)
        Next

        If left
            x(0) -= DOT_SIZE
        End If

        If right
            x(0) += DOT_SIZE
        End If

        If up
            y(0) -= DOT_SIZE
        End If

        If down
            y(0) += DOT_SIZE
        End If

    End Sub


    Private Sub CheckCollision()

        For z As Integer = dots To 1 Step -1
            If z > 4 And x(0) = x(z) And y(0) = y(z)
                inGame = False
            End If
        Next

        If y(0) > HEIGHT
            inGame = False
        End If

        If y(0) < 0
            inGame = False
        End If

        If x(0) > WIDTH
            inGame = False
        End If

        If x(0) < 0
            inGame = False
        End If

    End Sub


    Private Sub LocateApple()

        Dim rand As New Random()

        Dim r As Integer = rand.Next(RAND_POS)

        apple_x = r * DOT_SIZE
        r = rand.Next(RAND_POS)
        apple_y = r * DOT_SIZE


    End Sub

    Protected Overrides Sub TimerEvent(ByVal e As QTimerEvent)

        If inGame
            Me.CheckApple()
            Me.CheckCollision()
            Me.Move()
        Else
            timer.Stop()
        End If

        Me.Repaint()

    End Sub

    Protected Overrides Sub KeyPressEvent(ByVal e As QKeyEvent)

        Dim key As Integer = e.Key()

        If key = Qt.Key.Key_Left And Not right
            left = True
            up = False
            down = False
        End If

        If key = Qt.Key.Key_Right And Not left
            right = True
            up = False
            down = False
        End If

        If key = Qt.Key.Key_Up And Not down
            up = True
            right = False
            left = False
        End If

        If key = Qt.Key.Key_Down And Not up
            down = True
            right = False
            left = False
        End If

    End Sub

End Class

End Namespace

First we will define some globals used in our game.

The WIDTH and HEIGHT constants determine the size of the Board. The DOT_SIZE is the size of the apple and the dot of the snake. The ALL_DOTS constant defines the maximum number of possible dots on the Board. The RAND_POS constant is used to calculate a random position of an apple. The DELAY constant determines the speed of the game.

Dim x(ALL_DOTS) As Integer
Dim y(ALL_DOTS) As Integer

These two arrays store x, y coordinates of all possible joints of a snake.

The InitGame() method initializes variables, loads images and starts a timeout function.

If inGame
    Me.DrawObjects(painter)
Else
    Me.GameOver(painter)
End If

Inside the PaintEvent() method, we check the inGame variable. If it is true, we draw our objects. The apple and the snake joints. Otherwise we display "Game over" text.

Private Sub DrawObjects(ByVal painter As QPainter)

    painter.DrawImage(apple_x, apple_y, apple)

    For z As Integer = 0 to dots - 1
        If z = 0
            painter.DrawImage(x(z), y(z), head)
        Else
            painter.DrawImage(x(z), y(z), ball)
        End If
    Next

End Sub

The DrawObjects() method draws the apple and the joints of the snake. The first joint of a snake is its head, which is represented by a red circle.

Private Sub CheckApple()

    If x(0) = apple_x And y(0) = apple_y

        dots += 1
        Me.LocateApple()

    End If

End Sub

The CheckApple() method checks, if the snake has hit the apple object. If so, we add another snake joint and call the LocateApple() method, which randomly places a new apple object.

In the Move() method we have the key algorithm of the game. To understand it, look at how the snake is moving. You control the head of the snake. You can change its direction with the cursor keys. The rest of the joints move one position up the chain. The second joint moves where the first was, the third joint where the second was etc.

For z As Integer = dots To 1 Step -1
    x(z) = x(z - 1)
    y(z) = y(z - 1)
Next

This code moves the joints up the chain.

If left
    x(0) -= DOT_SIZE
End If

Move the head to the left.

In the CheckCollision() method, we determine if the snake has hit itself or one of the walls.

For z As Integer = dots To 1 Step -1
    If z > 4 And x(0) = x(z) And y(0) = y(z)
        inGame = False
    End If
Next

Finish the game, if the snake hits one of its joints with the head.

If y(0) > HEIGHT
    inGame = False
End If

Finish the game, if the snake hits the bottom of the Board.

The LocateApple() method locates an apple randomly on the board.

Dim rand As New Random()

Dim r As Integer = rand.Next(RAND_POS)

We get a random number from 0 to RAND_POS - 1.

apple_x = r * DOT_SIZE
...
apple_y = r * DOT_SIZE

These line set the x, y coordinates of the apple object.

If inGame
    Me.CheckApple()
    Me.CheckCollision()
    Me.Move()
Else
    timer.Stop()
End If

Every 140 ms, the TimerEvent() method is called. If we are in the game, we call three methods, that build the logic of the game. Otherwise we stop the timer.

In the KeyPressEvent() method of the Board class, we determine the keys that were pressed.

If key = Qt.Key.Key_Left And Not right
    left = True
    up = False
    down = False
End If

If we hit the left cursor key, we set left variable to true. This variable is used in the Move() method to change coordinates of the snake object. Notice also, that when the snake is heading to the right, we cannot turn immediately to the left.

nibbles.vb
' ZetCode Mono Visual Basic Qt tutorial
'
' In this program, we create
' a Nibbles game clone
'
' author jan bodnar
' last modified May 2009
' website www.zetcode.com


Imports Qyoto
Imports BoardSpace

Public Class VBQApp
    Inherits QMainWindow

    Dim WIDTH As Integer = 250
    Dim HEIGHT As Integer = 150

    Public Sub New()

        Me.SetWindowTitle("Nibbles")

        Dim board As New BoardSpace.Board()
        Me.SetCentralWidget(board)

        Me.Resize(310, 310)
        Me.Move(300, 300)
        Me.Show()

    End Sub


    Public Shared Sub Main(ByVal args() As String)
        Dim qapp As New QApplication(args)
        Dim app As New VBQApp
        QApplication.Exec()
    End Sub

End Class

In this class, we set up the Nibbles game.

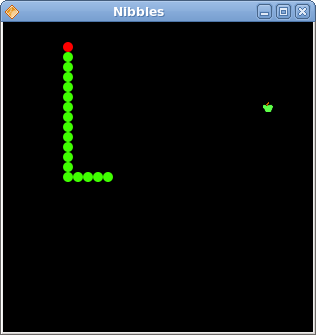

Nibbles
Figure: Nibbles

This was the Nibbles computer game programmed with the Qyoto library and the Visual Basic programming language.
